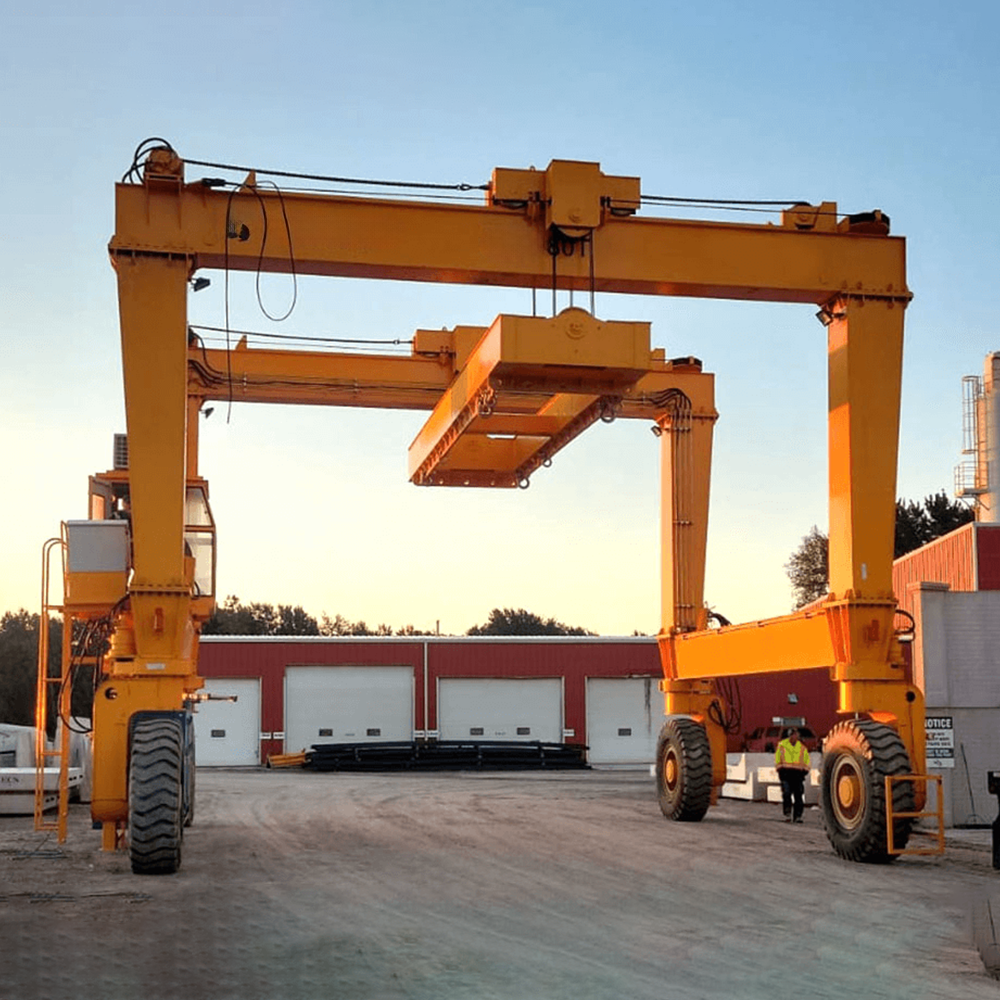

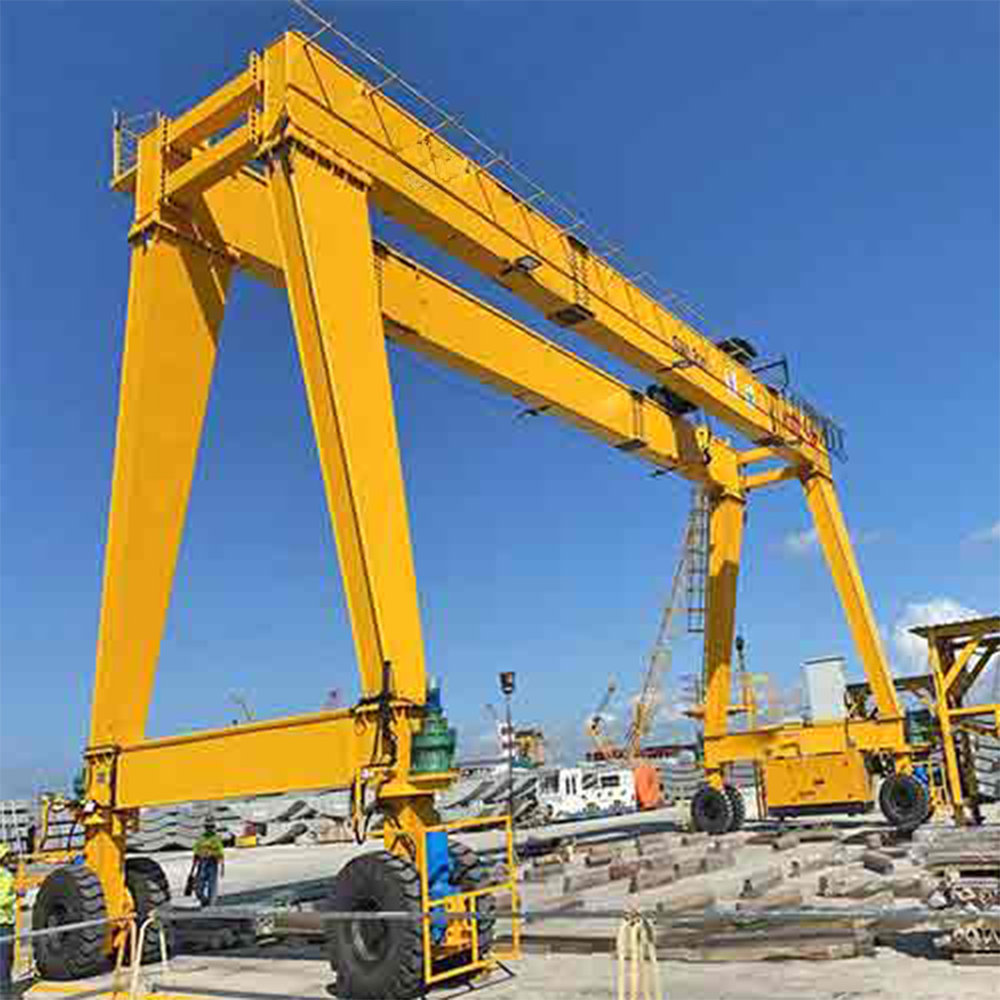

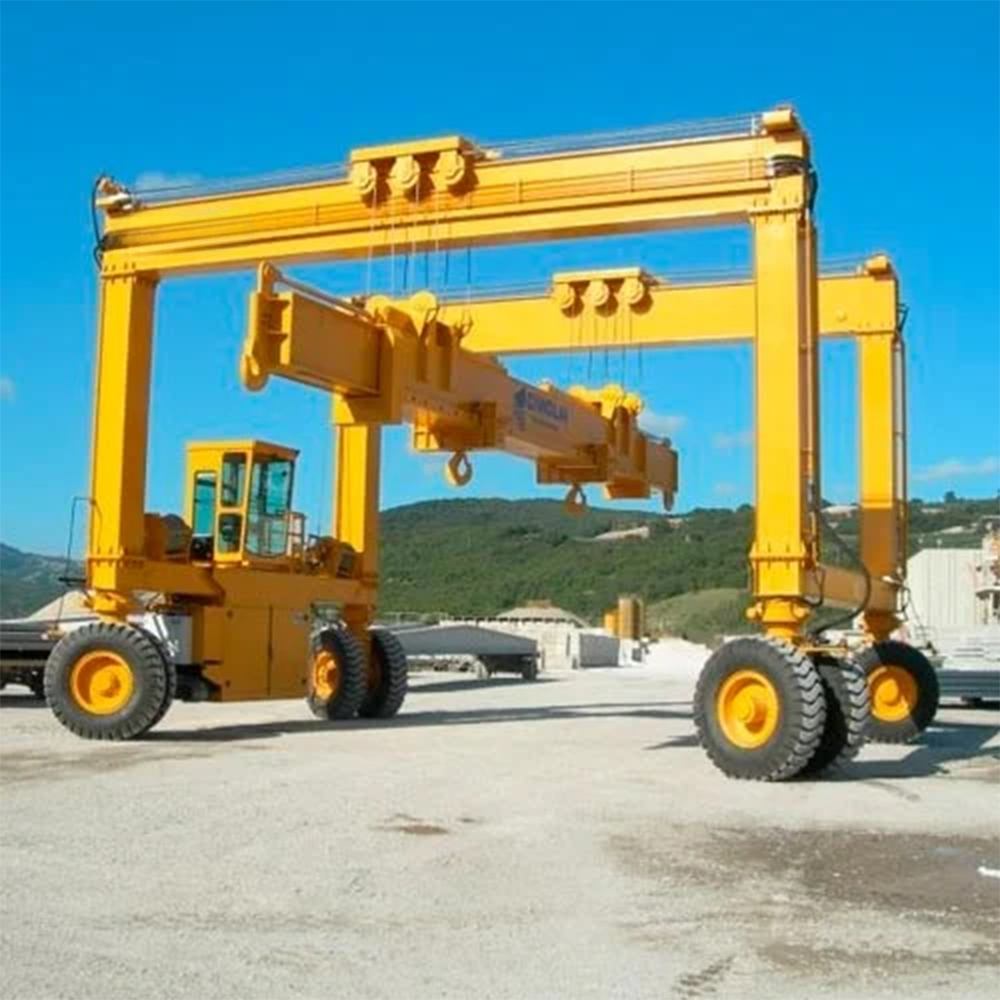

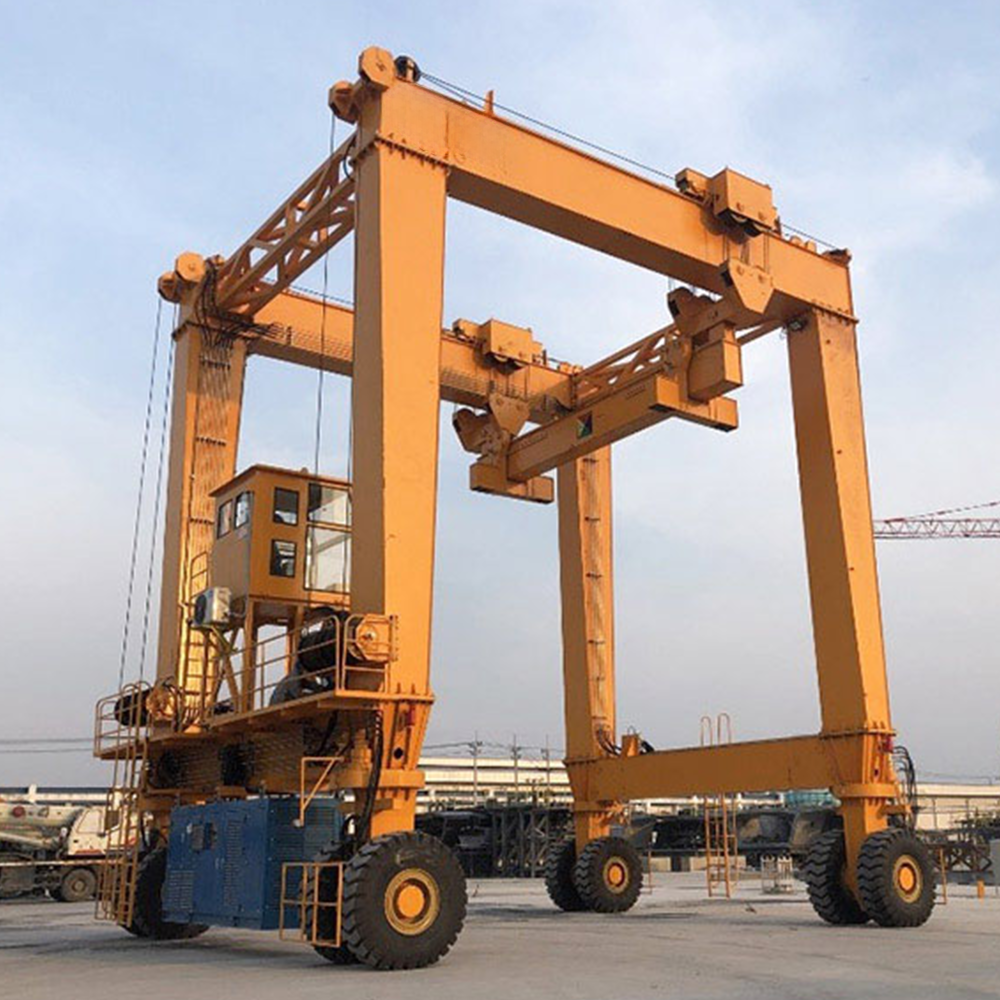

Double Girder Rubber Tyre Gantry Crane

For heavy-duty applications, a sturdy, mobile lifting solution is a double-girder rubber tire gantry crane, also known as double girder straddle carrrier. Compared to single girder versions, it can support heavier weights because of its two horizontal girders, or beams, which offer strength and stability. These cranes are frequently seen in a variety of industrial settings, including as manufacturing facilities, ports, and construction sites.

Double Girders: A pair of parallel horizontal beams that uniformly distribute the load and support the hoist.
Hoist/Trolley: The lifting device that travels along the girders and is in charge of raising and lowering loads is called a hoist or trolley.
End trucks: End trucks are the assemblies located at both ends of the girders that allow for horizontal movement and contain wheels.
Rubber Tires: Wheels that let the crane freely maneuver on different kinds of terrain.
Control System: Consists of the remote controls, control panel, and safety features for using the crane.
Motor: Usually an electric or diesel engine, this power source moves the crane and the hoist.
Legs: Sturdy vertical supports that attach the girders to the end trucks.

Product Description

Technical Parameter

Parameter	Specification
Lifting Capacity	20 to 800 tons
Span	5 to 50 meters
Lifting Height	6 to 18 meters
Travel Speed	20 to 50 meters per minute
Lifting Speed	3 to 10 meters per minute
Power Source	Diesel, Electric, or Hybrid
Control Method	Pendant control, Remote control, or Cabin control
Tire Type	Solid rubber or pneumatic
Working Class	A5, A6 (ISO classification)
Operating Environment	Indoor or Outdoor

Advantages

Both hydraulic and electric drive modes are offered.
Flexible steering with straight movement, 90-degree lateral movement, oblique movement, pivot steering, Ackerman steering, forward swing and retral swing.
A variety of spreaders, including bespoke spreaders and spreaders made of steel coil, beam, hook, and container are available.
Customized solutions with drawings, specifications, unique designs, and projects for all types of requirements
Two or four hoists to raise lengthy objects simultaneously and independently.
The crane's size can be customized, and it is powered by a diesel engine and propelled by a hydraulic system. It is all controlled by a PLC, remote control, or cab console control.
Excellent security, excellent loading and unloading efficiency, adaptability, minimal maintenance costs, and a significant reduction in operational procedures.
