Structural Advantages of Gantry Cranes in Outdoor Yard Handling Operations

In open-air environments such as ports, steel yards, container terminals, and bulk material yards, equipment stability, coverage, and environmental adaptability are critical. Gantry cranes have become core equipment for efficient outdoor handling. This is due to their unique structural design and strong site adaptability. This article analyzes the structural advantages of gantry cranes in outdoor yards. It also discusses optimization directions based on practical requirements.

Large Span Coverage Enabled by Gantry Structure

The most notable structural feature of a gantry crane is its portal frame support. The main girder is supported by rigid legs on both sides. The crane travels across the operating area. Compared with overhead cranes, it offers greater site flexibility.

Main advantages include:

●Wide operating coverage: The span can be flexibly designed based on yard width. Common spans reach 30–60 m or more.

●No need for building support: Suitable for fully outdoor environments. This reduces civil construction costs.

●Strong pass-through capability: Vehicles, containers, and transport equipment can pass beneath the legs.

In open yards with frequent logistics crossover, the large-span gantry significantly improves space utilization and handling efficiency.

Excellent Overall Stability for Complex Ground Conditions

Outdoor yard surfaces often have the following characteristics:

●Uneven foundations

●Long-term heavy load rolling

●Exposure to rain and settlement

Gantry cranes use a double-leg and rail-travel structure. This forms a stable multi-point support system. It provides strong anti-overturning capability.

Structural stability features:

●Wide leg spacing improves lateral stability

●Even wheel load distribution reduces rail stress concentration

●Optional anchoring and rail clamp safety devices

Compared with rubber-tired equipment, rail-mounted gantry cranes offer superior stability. This is especially true under heavy loads and high-frequency operations. They are ideal for steel, stone, and wind power equipment yards.

Modular Main Girder Design Improves Capacity and Maintenance

Modern gantry cranes commonly use box girders or truss girders. The structure is optimized for different working conditions.

Advantages of Box Girder Structure

●Strong bending and torsional resistance

●High rigidity suitable for heavy loads

●Good sealing and corrosion resistance

Suitable for heavy outdoor yards handling steel coils, plates, and precast components.

Advantages of Truss Girder Structure

●Light self-weight

●Low wind resistance

●High material utilization

Suitable for container yards and large-span light to medium-duty yards.

Through modular design, users can select configurations based on capacity, span, and duty cycle. This achieves the best balance between strength and economy.

Strong Wind Resistance and Environmental Adaptability

Outdoor yard equipment is exposed to wind, rain, and temperature variations. These factors require higher reliability. Gantry cranes consider environmental loads during the design stage.

Key design measures include:

●Wind load verification for main girder and legs

●Anti-wind anchoring systems

●Rainproof and dustproof electrical protection

●Weather-resistant steel or anti-corrosion coatings

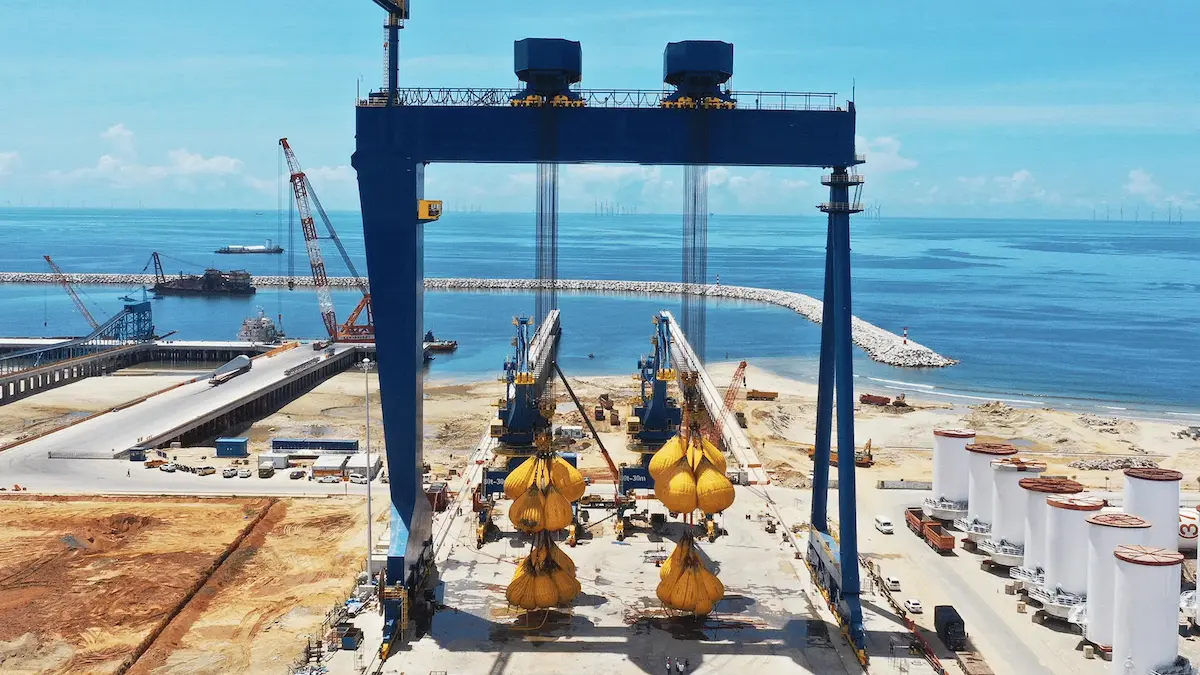

In coastal ports and open logistics parks, high wind resistance prevents sliding and structural fatigue. It ensures safe all-weather operation.

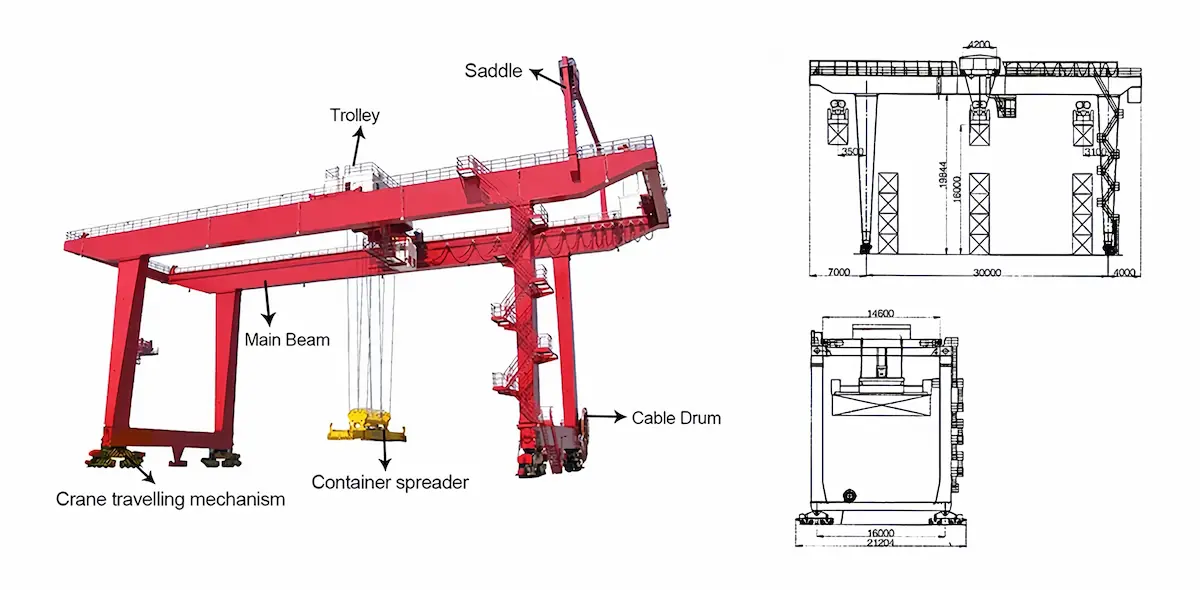

Well-Arranged Travel Mechanism for Easy Maintenance

The gantry crane places the long travel mechanism on ground rails. The trolley runs on the main girder. This creates a clear transmission hierarchy.

Operational advantages include:

●Clear transmission path for easier fault diagnosis

●Ground-level long travel units improve maintenance safety

●High modularization of trolley and hoisting mechanism

●Standardized cable and power supply layout

For outdoor yards requiring continuous operation, maintainability directly affects lifecycle cost. Gantry cranes show clear advantages in this aspect.

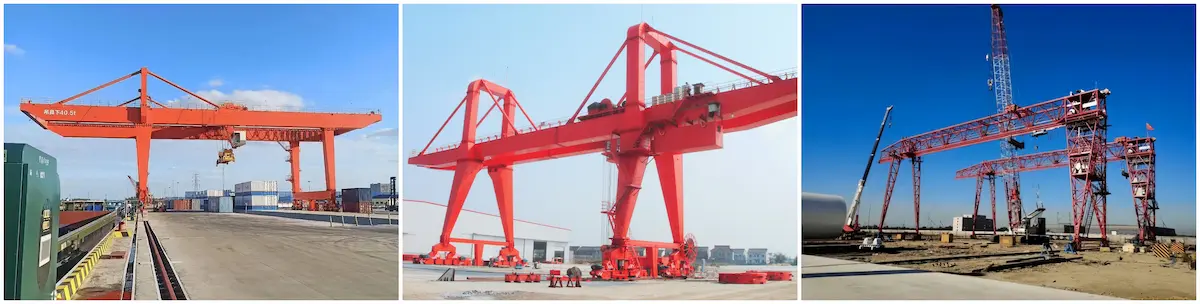

HSCRANE Gantry Crane Product Advantages

As a professional lifting equipment manufacturer, HSCRANE provides highly customized gantry crane solutions. These systems are well suited for various outdoor yard applications.

Core advantages include:

●Customized structural design: Optimized span and wheel load based on yard width and capacity

●High-reliability configuration: Premium gearboxes, motors, and control systems for heavy-duty cycles

●Enhanced wind protection: Multi-level anti-wind safety systems for coastal and high-wind regions

●Weather-resistant anti-corrosion solutions: Heavy-duty coating systems for outdoor environments

●Global project experience: Widely applied in ports, steel, wind power, and logistics industries

Through systematic engineering and strict manufacturing standards, HSCRANE helps customers achieve higher efficiency. It also delivers lower maintenance costs and longer service life.

Overall, gantry cranes are ideal for outdoor yard handling. Their large-span structure, strong stability, flexible girder forms, and environmental adaptability provide clear advantages. With the trend toward yard automation and larger scale operations, gantry cranes will continue evolving. Future upgrades will focus on intelligent control, lightweight design, and remote maintenance.

For outdoor yard operators seeking high efficiency and long-term reliability, selecting an optimized and reliable gantry crane solution is essential. It is a key step in improving overall logistics capacity.
