5-Ton FEM Standard Single Girder Overhead Crane to Thailand

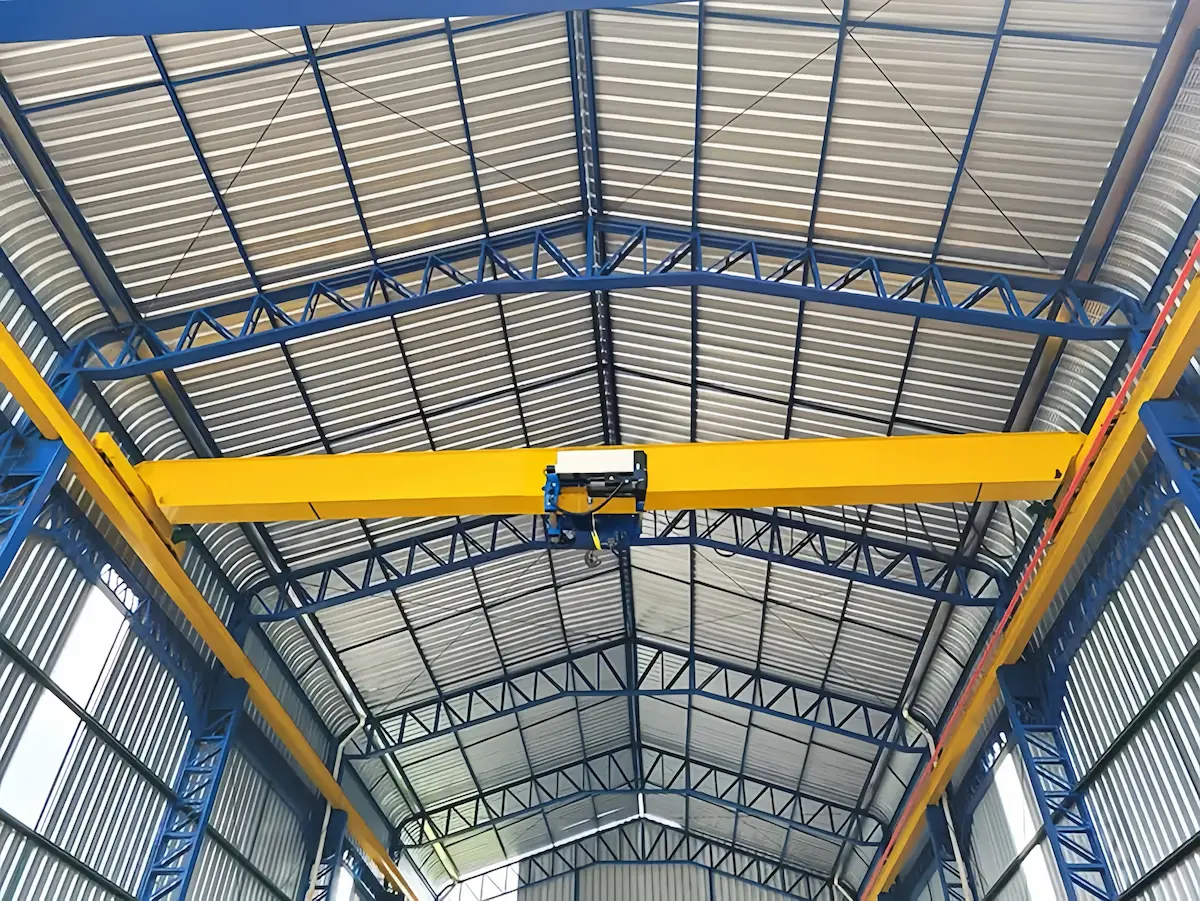

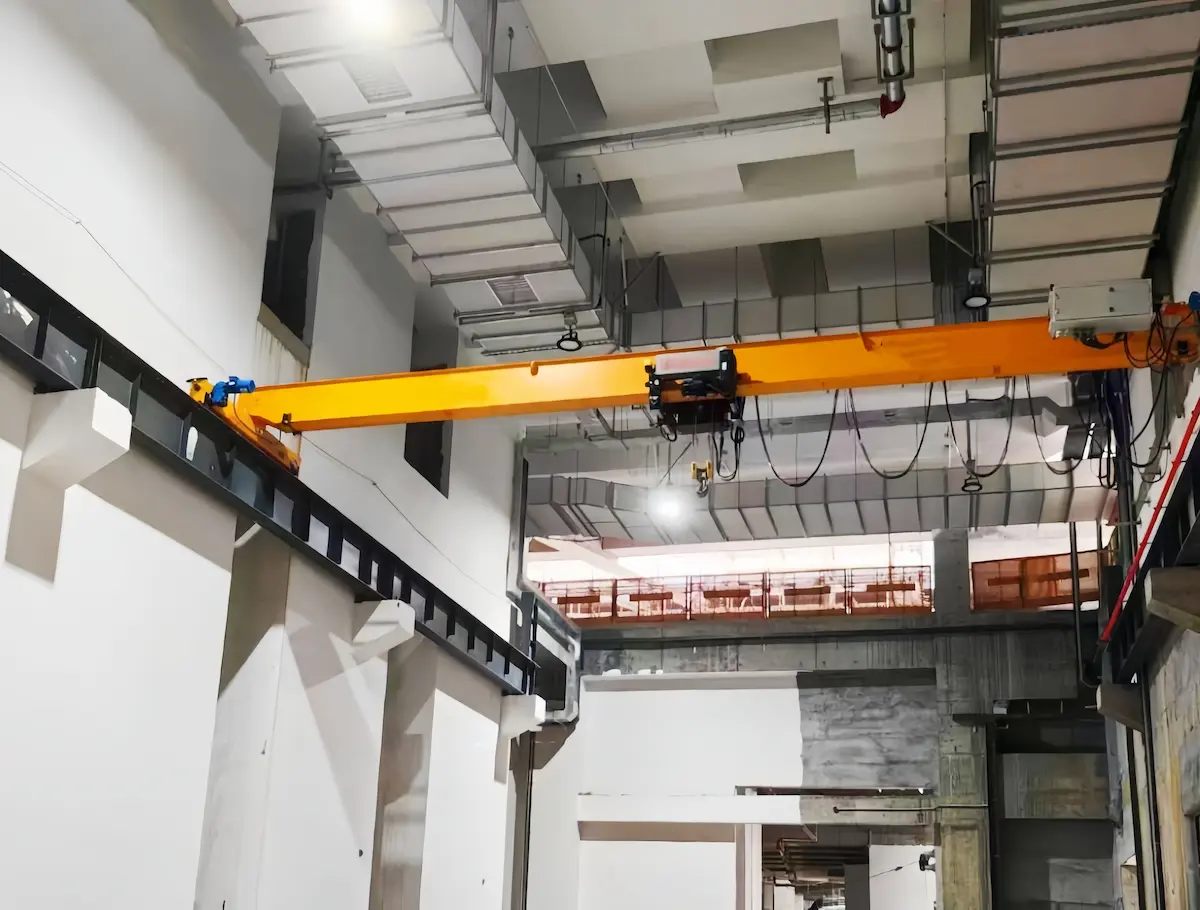

HSCRANE has successfully delivered a 5-ton FEM standard single girder overhead crane to a Thai industrial manufacturing enterprise. The equipment has passed on-site installation and commissioning, and is officially in operation at the client’s precision machinery assembly workshop for lifting and precisely positioning heavy components. This project validates HSCRANE’s supply chain reliability in the Southeast Asian market, and highlights the technical advantages of Euro-spec cranes regarding low headroom, lightweight structures, and precision positioning.

Core Client Needs and Operational Challenges in Thailand

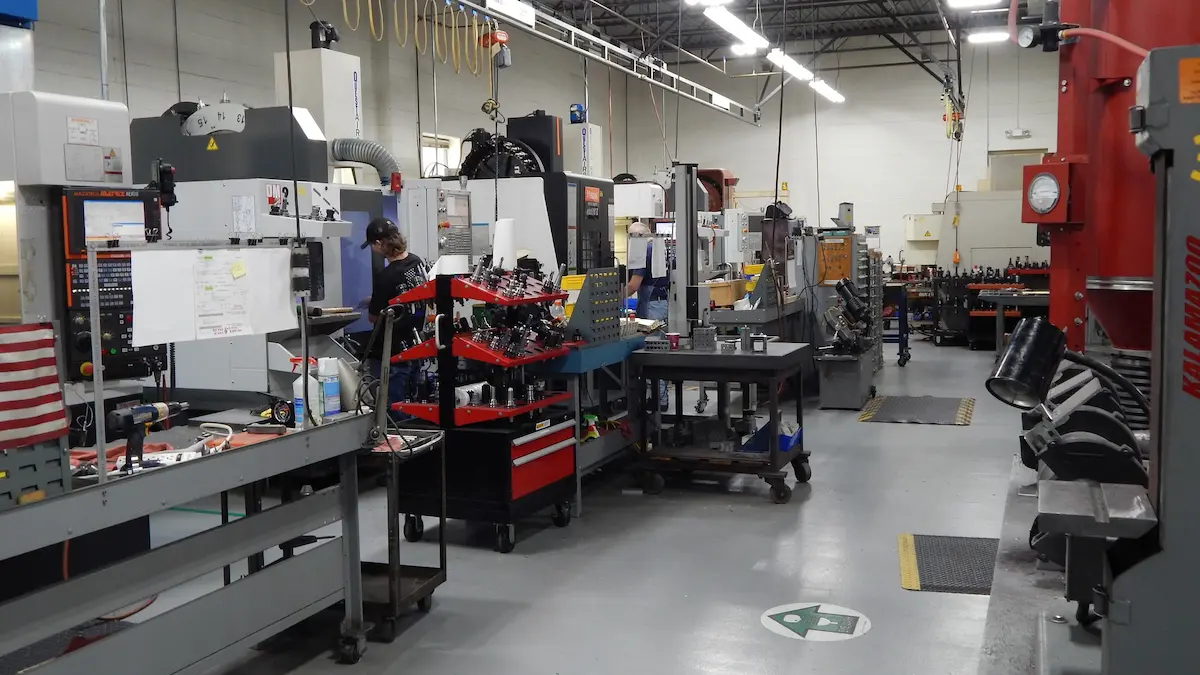

The Thai client’s workshop primarily handles the assembly and testing of customized mechanical equipment. The operating conditions imposed strict technical limitations and performance requirements:

·Limited Workshop Headroom: The original design of the client’s facility featured a low ceiling, leaving extremely tight upper clearance for crane operations. Traditional cranes could not operate safely while guaranteeing sufficient hook travel due to their tall structures. A low-headroom FEM design was mandatory.

·Millimeter-Level Precision Positioning: The machinery assembly process involves the precise mating of core components. Any violent swaying or impact can damage workpieces or cause assembly failure. The lifting system required extreme stability and micro-speed operation capabilities.

·High Temperature and Humidity Adaptability: Thailand’s tropical monsoon climate features year-round high temperatures and humidity. The electrical components, motor protection classes, and steel structure anti-corrosion coatings required high weather resistance to ensure long-term stability in industrial environments.

HSCRANE 5-Ton FEM Standard Single Girder Overhead Crane Technical Solution

To address these conditions, the HSCRANE engineering team customized an optimized FEM standard single girder overhead crane solution. The core technical parameters and configurations are detailed below:

·Rated Capacity: 5 Ton

·Span: 16.5 Meters

·Work Duty: FEM 2M / ISO M5

·Hoisting Unit: Euro-spec low-headroom wire rope electric hoist

·Speeds: Variable Frequency Drive (VFD) for lifting, trolley, and crane travel

·Protection Class: IP55 for motors and control boxes, Class H insulation

·Low-Headroom Design Increases Effective Working Height: The main girder utilizes an optimized off-track box girder design, paired with a side-hung Euro-spec low-headroom wire rope electric hoist to minimize the distance between the hook and the workshop ceiling. This structure significantly reduces deadweight and wheel load pressure on facility corbels and runway beams, increasing effective lifting height by over 15% compared to traditional cranes.

·Full VFD Control and 3-in-1 Drives Ensure Precision Positioning: Lifting, trolley, and crane traveling mechanisms are equipped with Schneider variable frequency drives to achieve stepless speed regulation. This eliminates inertial shock during starting and braking, ensuring smooth hook travel for millimeter-level precision assembly alignment. Traveling mechanisms adopt a 3-in-1 drive system integrating the motor, hard-tooth helical gear reducer, and a maintenance-free electromagnetic disc brake, delivering high transmission efficiency with operating noise controlled under 75 dB.

International Transportation, On-Site Installation, and Delivery

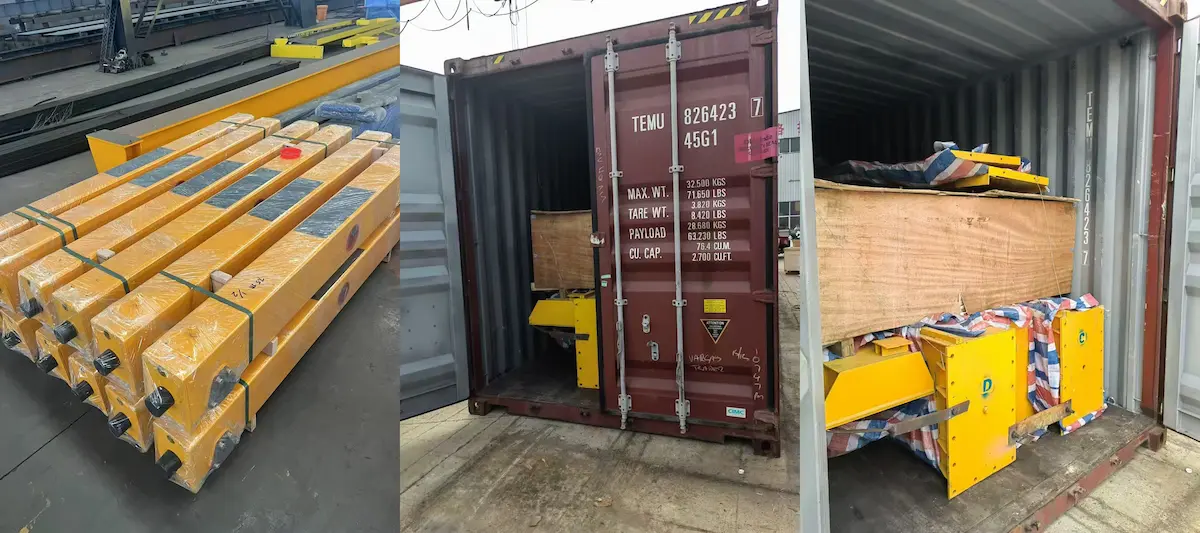

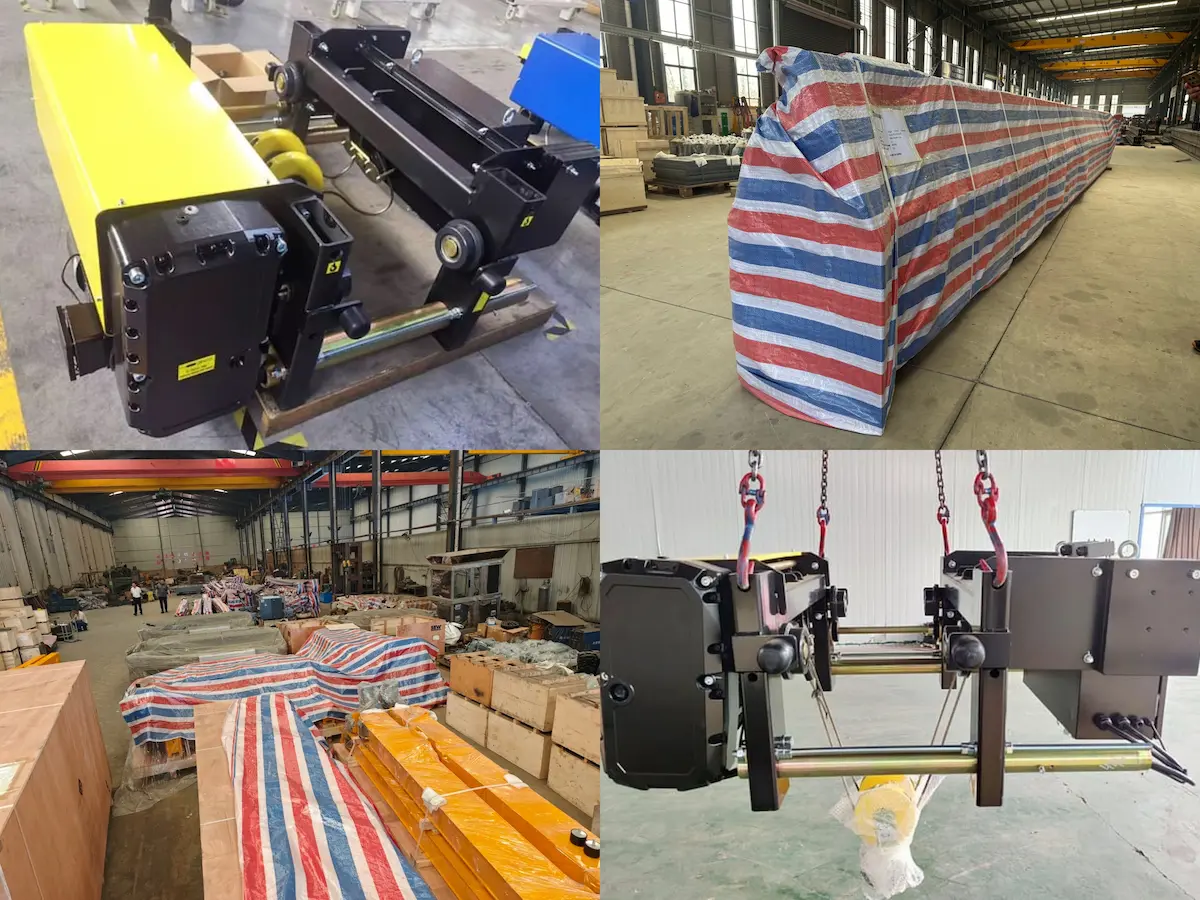

Since international transportation involves land transport, sea freight, and overseas customs clearance, HSCRANE implemented standardized modular packaging for the 16.5-meter main girder and accessories. The electrical system and festive cables were wired and pre-tested within integrated cable trays before leaving the factory. Reinforced container shipping ensured zero damage during maritime transit.

Upon arrival at the Thai factory, HSCRANE guided the local installation team via real-time engineering video link to perform runway re-inspections, main-to-end girder splicing, and electrical networking. Thanks to the high-precision machining standards of the FEM crane, no dimensional deviations occurred during on-site assembly. Following power-on commissioning, both the static load test (125% rated load) and dynamic load test (110% rated load) passed on the first attempt.

Client Operational Feedback

Since being commissioned onto the production line, the Thai client reported the following actual performance results for the 5-ton FEM standard single girder overhead crane:

·Millimeter-Level Precision Alignment Guarantee Lifting Safety: On-site personnel reported that the micro-speed control function of the full VFD system eliminates instantaneous swaying during starting and braking. Large, heavy components can be adjusted with millimeter-level finesse during mating assembly, completely eliminating collision risks and significantly enhancing operational safety.

·Reduced Energy Consumption and Noise Optimize Maintenance Costs: Management noted that the integrated 3-in-1 drive system delivers exceptionally high transmission efficiency. Compared to legacy equipment used previously, the crane’s comprehensive energy consumption dropped by nearly 20%, with operating noise controlled under 75 dB. Furthermore, the hard-tooth gear reducers and maintenance-free brakes performed excellently, drastically reducing downtime for maintenance.

·Weather-Resistant Stable Operation Earns High Client Recognition: Operating continuously for several months under tropical high-temperature and high-humidity conditions, the anti-condensation electronic control system with IP55 protection and the Sa2.5-grade high-anti-corrosion coating withstood the operational environment with zero failures. The client highly commended HSCRANE’s quality and customized solution, stating they will prioritize renewing cooperation for subsequent expansion projects.

The 5-ton FEM standard single girder overhead crane now operates smoothly, earning high praise from the Thai client for its excellent low-noise, low-energy, and shock-free performance. By improving workshop material flow efficiency, this equipment successfully powers the client’s capacity upgrade, validating HSCRANE’s professional quality in customized crane exports.
