Delivery of HSCRANE 8-Ton Electric Rail-Free Gantry Crane to Argentina

In the current international industrial equipment market, higher standards are required for the flexibility and ground adaptability of material handling equipment. Recently, an 8t electric rail-free gantry crane customized by our company for a large heavy machinery manufacturing enterprise in Buenos Aires, Argentina, successfully completed all factory tests and professional packaging. It has been officially loaded into containers and shipped to South America. From technical scheme confirmation to precise manufacturing, this project fully satisfies the customer’s strict working condition requirements for cross-regional rail-free operations in the workshop.

Project Background and Customer Requirements

The Argentine customer mainly engages in large steel structure processing and industrial equipment integrated assembly. With the expansion of plant capacity, the original fixed rail-mounted cranes exposed pain points such as high modification costs, the need to lay rails on the workshop floor, and limited flexibility. The customer urgently needed an electric rail-free gantry crane that requires no ground rails, offers free steering, flexible relocation, and stable hoisting performance.

After multiple rounds of technical parameter alignment and scheme evaluation, our engineering technical team tailored an electric rail-free gantry crane with a rated lifting capacity of 8 tons for them. The equipment not only saves cumbersome civil engineering rail laying projects, but also perfectly adapts to the customer’s composite functional needs for multi-zone operations in the workshop.

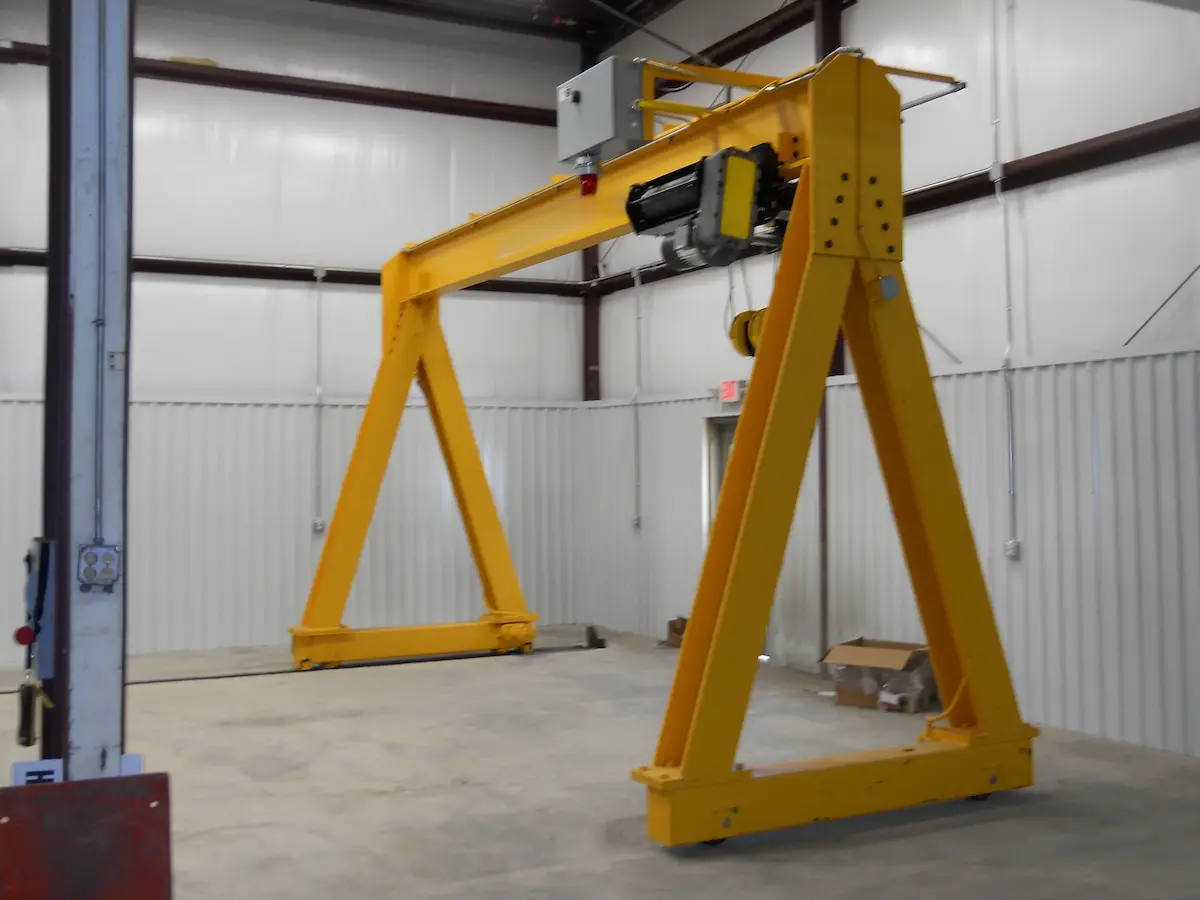

Core Parameters and Configuration of the Electric Rail-Free Gantry Crane

This set of 8t electric rail-free gantry crane strictly followed international lifting machinery manufacturing standards during the design and manufacturing stages. All structural components use high-quality carbon structural steel to ensure overall machine strength and fatigue life. The core physical parameters and detailed configurations are shown in the table below:

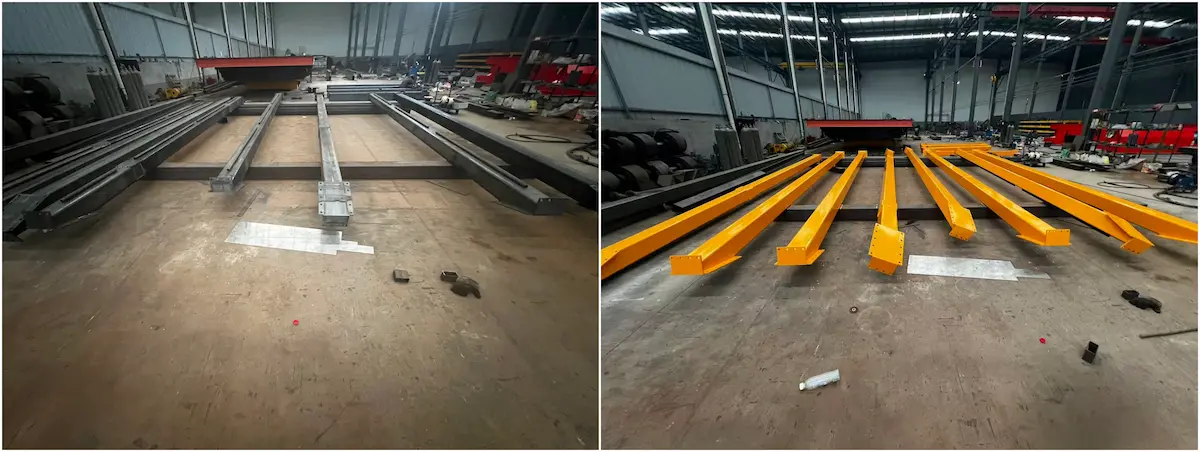

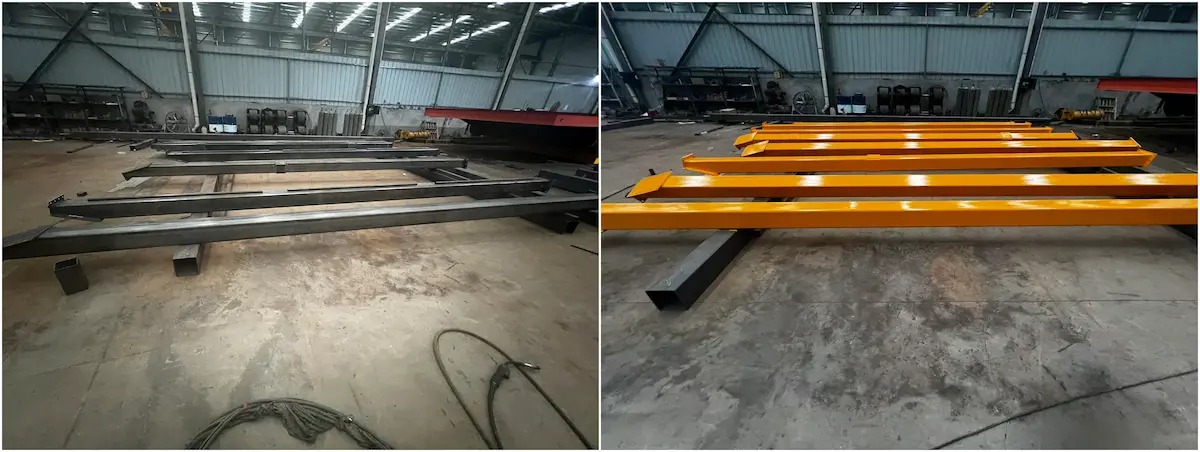

Manufacturing and Lean Quality Inspection

●Cutting and Forming Welding: All steel plates of the electric rail-free gantry crane were cut using CNC plasma cutting machines. Critical welds on the main girder and support legs passed ultrasonic non-destructive testing (UT), eliminating internal blowhole and slag inclusion hazards.

●Coordinated Design of Ground Beams and Electrical Systems: The height of the ground beams was precisely optimized and increased by 8 cm based on conventional standards for the electrical frame structure (split height 30+37 cm), ensuring control cabinets and cable routing are protected from ground dust and mechanical extrusion under complex working conditions.

●Drive System Commissioning: The crane drive system adopts electromagnetic braking three-phase asynchronous motors. Continuous running tests under full load, overload (1.25 times), and steering flexibility were conducted in the factory before departure, with all electrical and mechanical indicators meeting standards.

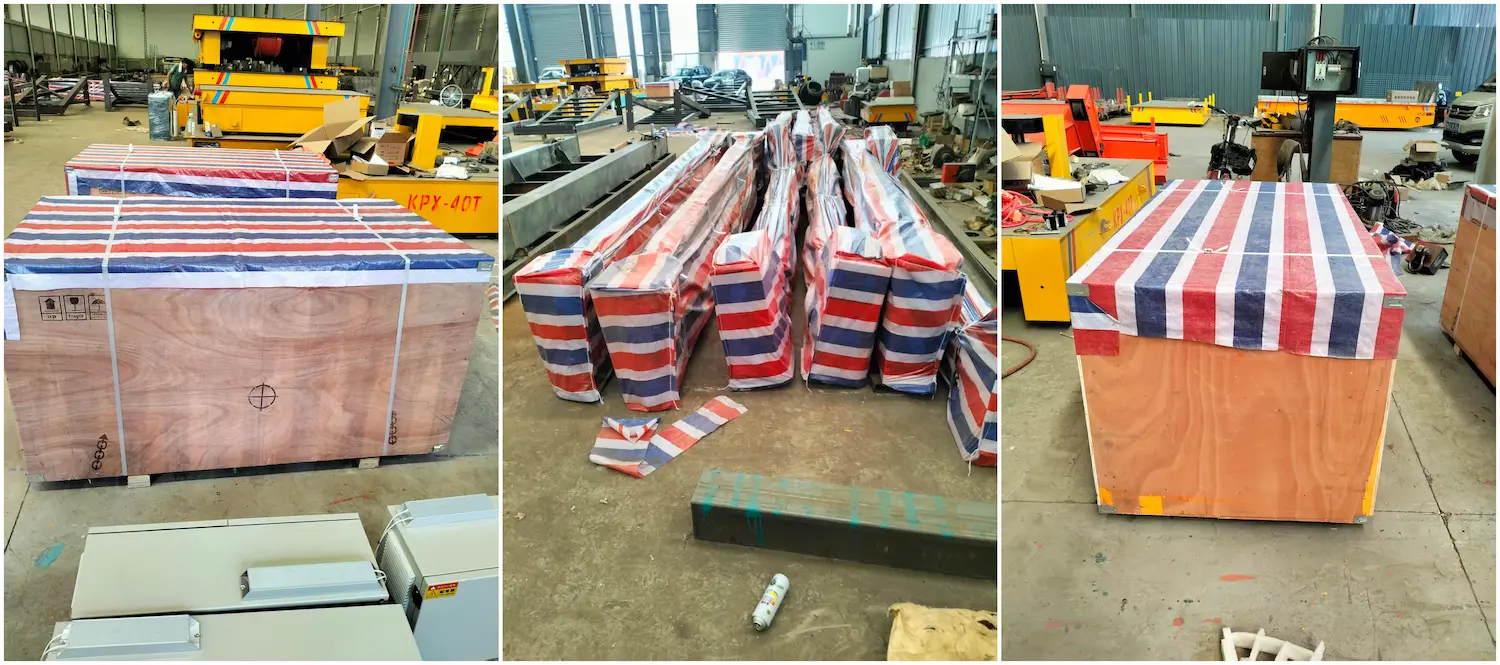

Professional Packaging and International Logistics Shipment

Tailored to long-distance sea transport and South American port loading/unloading characteristics, our logistics packaging team formulated a strict export moisture-proof and anti-collision scheme:

●Anti-Corrosion and Moisture-Proof Treatment: All exposed metal processing surfaces were coated with anti-salt spray rust-proof grease and covered with vacuum moisture-proof aluminum foil film, effectively isolating humid, hot, and high-salt air during maritime transport.

●Wooden Box Fixation: Extra-long components such as main girders, ground beams, and support legs were reinforced using fumigated wooden boxes complying with international phytosanitary standards (ISPM 15) and high-strength steel belts, preventing displacement and bumping during container transport and hoisting.

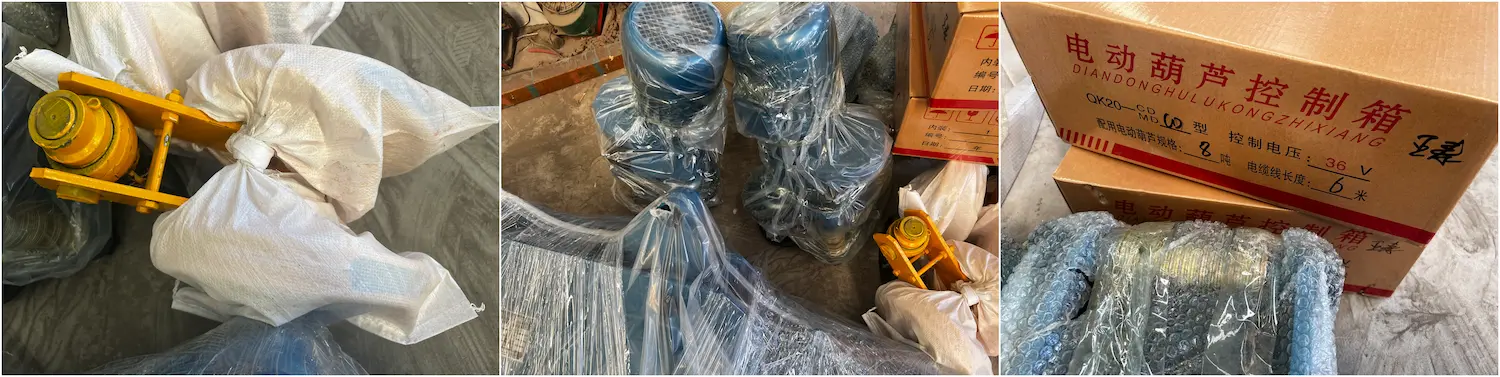

●Loose Parts Categorized Container Loading: Electric hoists and random electrical accessories were packed separately on pallets. Lifting marks in Chinese and English, center of gravity positions, and waterproof/shockproof warning logos were clearly sprayed on the outside of boxes.

Project Summary and Industry Outlook

The successful shipment of this 8t electric rail-free gantry crane once again verifies Chinese manufacturing’s R&D strength and manufacturing precision in non-standard customized material handling equipment. After arriving at the site in Argentina, this equipment will significantly enhance local material flow efficiency and reduce infrastructure modification costs. In the future, our company will continue to deepen presence in overseas high-end crane markets, empowering global industrial manufacturing upgrades with reliable quality and professional technical services.
